Puppet

Opensource Automation Software

Presentation by Kristian Botnen

A brief history

• ssh looping as a configuration tool
• closed source, high cost software from a big vendor
• no central repository for configuration items
• no central oveview of nodes and state

What is puppet?

Facter discover things about the host its running on

						ac01j8wt:staffmobilityweek2013 kbotnen1$ facter
						architecture => x86_64
						domain => klientdrift.uib.no
						facterversion => 1.6.12
						fqdn => ac01j8wt.klientdrift.uib.no
						hardwareisa => i386
						hardwaremodel => x86_64
						hostname => ac01j8wt
						id => kbotnen
						interfaces => lo0,gif0,stf0,en0,p2p0,en1
						ipaddress => 1x.1xx.1x.1xx
						ipaddress6 =>
						ipaddress6_en1 =>
						ipaddress_en1 => 1x.1xx.1x.1xx
						ipaddress_lo0 => 127.0.0.1
						...
						is_virtual => false
						kernel => Darwin
						swapfree => 745.09M
						swapsize => 4096.00M
						timezone => CEST
						uptime => 10 days
						uptime_days => 10
						uptime_hours => 257
						uptime_seconds => 926978
						virtual => physical
						ac01j8wt:staffmobilityweek2013 kbo041$



Hiera is external variable lookups

packages:
  augeas-lenses:            { ensure: installed }
  augeas-tools:             { ensure: installed }
  chromium-browser:         { ensure: installed }
apt_sources:
  puppetlabs:
    location:    http://apt.puppetlabs.com/
    release:     precise
    include_src: false
pklocalauthority_aptadmin:   admin
pklocalauthority_aptmanager: ansatt
updateconfig_packageblacklist:
  - puppet
  - facter
  - vim-puppet
print_manage_printers:           false
print_manage_printers_partially: false
print_manage_config:             true
print_manage_configfilename:     legacy_cupsd.conf.linux.erb


Puppet is the glue

How it works?

• define desired state for your infrastructure
• configuration is code which accomodate versioncontrol
• you tell what you need, puppet takes care of how

Example of creating a user

						class accounts ($uid,$realname,$pass,$username,$status,){
						  define singleuser ($uid, $realname, $pass, $username, $status) {
						    user { $username:
						      ensure            =>  $status,
						      uid               =>  $uid,
						      gid               =>  $username,
						      shell             =>  '/bin/bash',
						      home              =>  "/home/${username}",
						      comment           =>  $realname,
						      password          =>  $pass,
						      managehome        =>  true,
						      require           =>  Group[$username],
						    }
						    group { $username:
						      gid               =>  $uid,
						    }
						    file { "/home/${username}":
						      ensure            =>  directory,
						      owner             =>  $username,
						      group             =>  $username,
						      mode              =>  0711,
						      require           =>  [ User[$username], Group[$username] ],
						    }
						  }
						}


Example of creating a user

						  accounts::singleuser { 'Homer Simpson':
						    uid             =>  533,
						    realname        =>  'Homer Simpson',
						    pass           =>  'asuperlongandcomplexpasswordhashwithsalt',
						    username        =>  'homer',
						    status          =>  'present',
						  }


will probably work on mac, FreeBSD and various Linux flavors

puppet is also used on windows and openbsd

Puppet modules

• accounts in the previous slide is a module
• a lot of modules are available from puppetlabs and the community
• not all modules are of good quality
• written in a declarative "ruby-like" language
• allows inline ruby
• Puppet forge http://forge.puppetlabs.com
• Github https://github.com

Module development at UIB

• foreman and redmine appstack
• galicaster for DigUIB
• crypt, munki, cups, ha-proxy, +++
• app developers write puppetmodules and submit to QA
• ... and hopefully it makes it to production

Example of module use, Foreman server

							1	node 'aserver.uib.no' {
							2 	  class { 'platform::el6::base':
							3 	    env  => 'prod'
							4 	  }
							5
							6 	  class { 'app::web::foreman':
							7 	    service_name => 'foremangui.uib.no',
							8 	    backend => pgsql,
							9 	    ssl_host => $::fqdn
							10 	  }
							11 	}


Puppet infrastructure at UIB

• 6 puppetmasters, dev test and production
• 4 external node classifiers (foreman), test and production
• servermachines and clientmachines are separated
• 145 rhel servers, 80 mac clients and about 250 ubuntu clients

Node classification

• Foreman makes it easy to classify new nodes
• We classify into group based on faculty and deptartment
• Configuration items (i.e packages) are tied to groups
• Foreman is ruby too

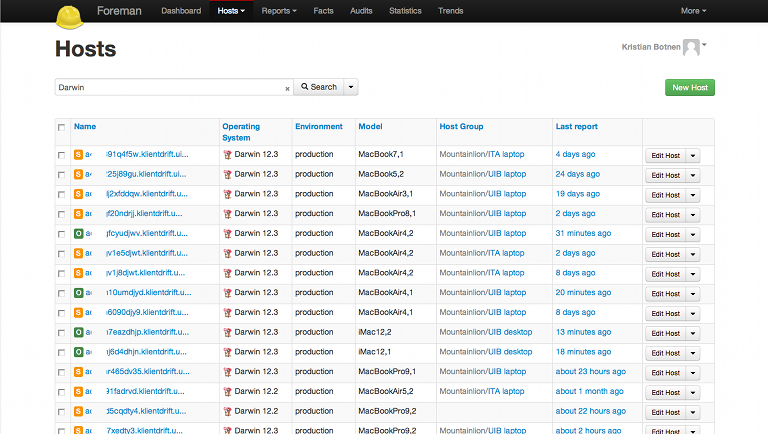

Foreman list all managed hosts

Foreman list host details

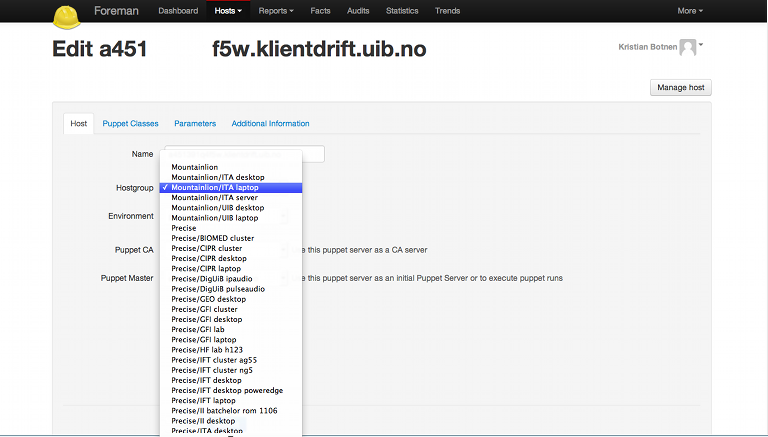

Foreman classification into group

Shared infrastructure, shared configuration code

• Redhat, Ubuntu and Mac deploys from the same infrastructure
• Redhat, Ubuntu and Mac use the same configuration codebase
• Redhat, Ubuntu and Mac use the same gui for classification

THE END

questions?
